Alb Filter® PRO CAMPER Set Drinking Water Filter Combination | With GEKA Connection I Silver

Alb Filter PRO CAMPER

Drinking water filter combination for refuelling and fixed installation.

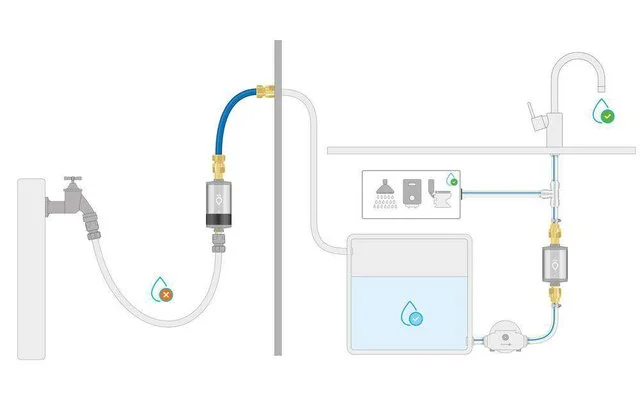

Filter like a pro! For water tanks from 120 litres we recommend the water treatment to
are combined. Here, when filling the water tank with the Mobil Active and
our pre-filter Alb Protect filtered. The chemical residues that are filtered from the outside
cannot be reproduced in the tank. After the water tank and behind
Pressure water pump, the Travel Nano Set is then installed. The nano filter medium
protects you from bacteria or micro germs that get into the water tank or there
are created.

Scope of delivery

• 2x Alb Filter Element housing
• 1x Alb Filter Active cartridge
• 1x Alb Filter Nano cartridge
• 1x Alb filter Protect with exchange pad
• 1x Alb Filter Mobile connection set
• 1x Alb Filter Travel connection set
• 1 x Alb Filter wall mount

Technical data
Housing: Colour according to choice.
Connection: ½ inch thread IG / AG
Dimensions Travel (inside):L:255 x W:69 x D:69 mm (With GEKA connection)
Mobile (outside): L:280 x W:69 x D:69 mm (With GEKA connection and Protect pre-filter)
Alb Element water filter housing
The universal housing can be used to hold all Alb Filter cartridges.
Outside the camping season, you can simply continue to use the filter at home and e.g.
install under your kitchen faucet.

1. Refueling outside – Active main filter medium
Inside the cartridge there is a sintered core of activated carbon, which is able to filter
is, chlorine, heavy metals, asbestos fibers, various drug residues,
Solvents, pesticides, aromas and fine particles (rust, lime flakes, sand) to filter.
Due to industry and agriculture there are hundreds of chemical compounds in the
Water, which fall within the performance range of the Active filter cartridge.

2. After the water tank – Nano germ barrier
The nano hollow fiber membrane is used for the filtration of bacteria and faecal bacteria
smallest mechanical particles. With a pore fineness of 0.1 μm, bacteria such as
z. E.g. E-Coli (1.5 μm), Legionella or faecal germs on the extremely thin membranes purely
effectively filtered mechanically and without chemical additives.

Alb Travel and Mobil connection set

Travel (inside): To enable a quick and clean installation and removal of the filter, we use
gEKA® quick couplings (DVGW) specially developed for Alb filters with
integrated backflow stop and step nozzle (10 – 13mm).
Mobile (outdoor): Also for refuelling we rely on the GEKA® Plus version which has 100%
is compatible with Gardena® hose connectors. DVGW certified and food safe.

Alb Filter Protect – Solid Filter
Protect module is simply screwed onto the filter housing and filters coarse
Impurities (sediments, pipe debris) up to 40 μm from the water. For very
particle-containing input water, this prolongs the life of the downstream
Filter cartridges.

With practical wall bracket
The Alb Filter wall bracket ensures that the housing remains fixed while driving.
The further advantage is the easy assembly and the practical lock, for a quick and easy removal
Removal and installation.

Range of services

• Removal of bad tastes and odours
• High-quality Alb Filter coconut block activated carbon adsorbs annoying odours (chlorine,
• CKW’s, FCKW’s and many more) and taste impairments in the drinking water.
• Reduces heavy metals
• The adsorbing effect of activated carbon binds heavy metals such as lead and copper in drinking water
• Copper in drinking water.
• Filtration of microplastics
• Due to the ultra-fine structure of the sintered activated carbon, microscopic plastic
• microscopic plastic particles are reliably retained.
• Reduction of pesticides and pharmaceutical residues
• Organic compounds such as pesticide residues, herbicides,
• Herbicides, insecticides, drug residues, hormones and hormone-like substances
• can be reduced.
• Filtration of minute microorganisms
• The main focus of Nano is on the filtration of germs and bacteria in high
• e.g. E-Coli, Vibrio Cholarae, Shigellae, Salmonella.
• High performance membrane
• Through suitable bundling of hollow fibres, a flow rate of up to 11
• Litres/min.
• Turbidity in water
• Reduction of water fog and phytoplankton by retention through the
• Membrane.
• Highest safety
• Automatic visible reduction of the water flow in case of exhaustion of the
• Nano cartridge.
• Certified
• Certified and tested.
