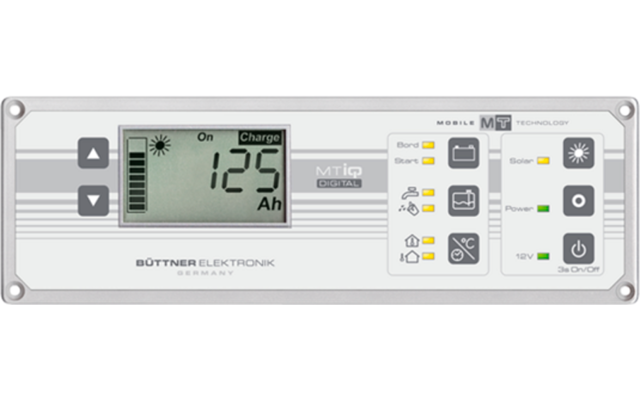

Büttner Elektronik Büttner MT IQ InfoPanel Digital Battery Computer With Shunt 200 A

The MT Info-Panel Digital is a multi-panel system for motorhomes, which combines the most important functions and information in a user-friendly way in one device.It consists of a display and control unit, as well as the smart shunt for current measurement and evaluation of the remaining battery capacity.

Battery computer for the on-board battery
Voltage in V
Battery current in A
Battery capacity in % and Ah
Remaining run time in h
Undervoltage protection
Starter battery voltage in V

Fill level display
Fill level of fresh and waste water tank in %

Thermometer/Clock
Indoor/outdoor temperature in °C included
2 temperature sensors
Time in 24-hour view

Solar remote display
Suitable for all MT solar charge controllers built in 2014 or later
Actual solar power in W
Actual solar current in A
Charged solar capacity in Ah
Charged solar energy in kWh

Switch output (Power On/Off)
On/Off switch for applications (e.g.
Inverter Charger Combi or
Fresh water pump) to
max. 16 A

12V main switch function (12V on/off)
Main switch for on-board power supply (pump, ICC, etc.)
via switching output 0.3 A

Details

• Operating voltage: 12 V
• Installation depth: 24 mm
• Installation dimension: 57 x 185 mm
• Dimensions (W × L): 65 x 200 mm
