Clesana Toilet C1 With L-adapter

The innovation in the field of mobile sanitary solutions: flexible, reliable and environmentally friendly.

Toilet solutions from Clesana are as hygienically clean as they are environmentally friendly. Thanks to the process of thermo-pressure sealing of barrier film (liner), excreta and toilet waste can be disposed of easily and without residues, without the need for water or sanitary additives.

Technical data

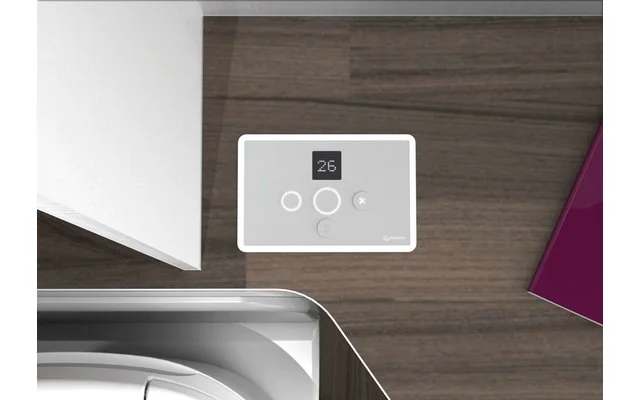

• Display outside (H x W x D ): 85 x 128 x 38 mm
• Load capacity (body & lid): 150 kg
• Toilet trips large per liner: 26
• Toilet trips small per liner: 36

Performance data

• Rated voltage: 12V
• Supply voltage: 10-15 V
• Power consumption (maximum): 27 A
• Power consumption standby: 0,14 W
• Power consumption maximum: 324 W
• Energy consumption welding process: 0,32 Wh
• Energy consumption separation process: 0,67 Wh

Cycle times use

• Bag chain cycle (sealing): ± 60 sec
• Single bag cycle (sealing and cutting): ± 90 sec

Other

• Lifetime PTFE tape: 1,500 welds

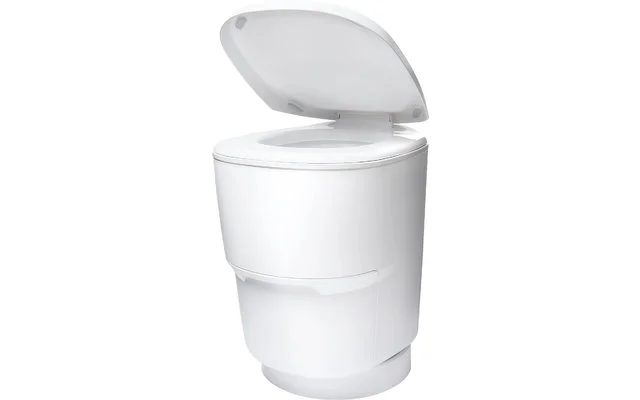

• Lid: Soft Close

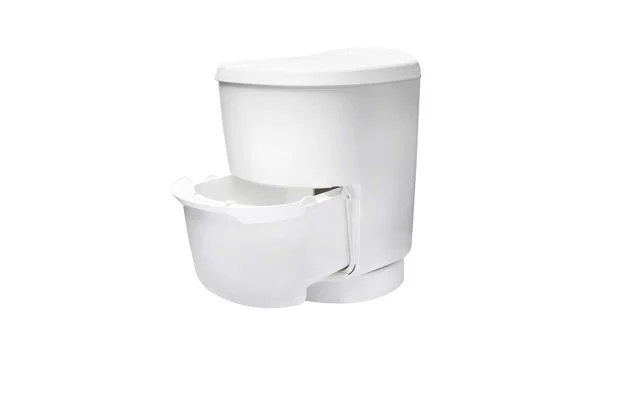

• Volume drawer (small/large): 8 / 4, combined 4-6
• Protection class: IP 54
• Electrical safety: Domestic appliances
• EMV / EMC: 2014/30/EU

Advantages for campers

• Hygiene according to medical standards
• Free from odours
• Universally usable (nappies, food waste, hygiene articles, etc.)
• Easy handling and cleaning
• More environmentally friendly than chemical toilets
• More freedom due to independence from disposal stations and water supply
• Immediately ready for use, even after long breaks in use
• No winterizing necessary
• Can be used without effort even for a single visit to the toilet
• Low maintenance requirements
• Simple and safe disposal of toilet bags

Advantages for vehicle manufacturers

• New freedom in floor plan & space concepts in vehicle development
• Anticipatory adaptation to the growing need for more independence in camper travel (away from campsites/sites with supply stations)
• High potential for gaining new customers, especially in the target group of new and young campers
• Clear differentiation from other manufacturers through the use of innovative sanitary technology
• Clesana C1 can be installed in all layouts in which the Thetford C260 series is intended without extensive adjustments to the parts lists
• For rental vehicles the maintenance & cleaning effort is reduced
• Simple retrofitting by the trade on site
• High potential for retrofitting already registered vehicles with conventional chemical toilets (other series than C260 can also be retrofitted by specialist dealers)
• Improvement of camping infrastructure, as pitches can be offered without the need for a central sanitary solution (farm holidays, camping in vineyards, etc.)
