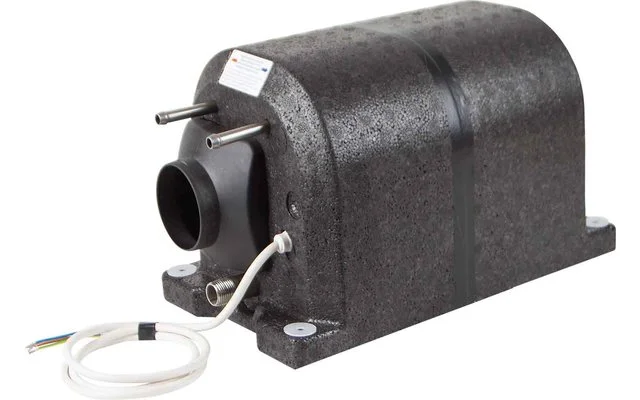

Elgena Boiler Compact Air

Nautic-Compact Air is a hot water boiler specially designed for mobile homes, yachts, boats and sales vehicles.
The units are available in 2 versions and 2 sizes as standard:

Type L is specifically used for with motor boats and mobile homes; the device is connected to the circulating air heater and the process water is heated via the built-in heat exchanger of the device during the heating phase. The hot water is therefore heated up free of charge and reaches about the same temperature as the heating air.

Type LE is a combi unit, it can heat the process water via the circulating air heater just like Type L or via the built-in electric cartridge when the vehicle is not moving. The water is heated to approx. 70°C.

When fully heated (electrically to approx. 70° C, via warm air to the temperature of the air flow), two to three times the amount of hot water can be removed by adding cold water.

Nautic-Compact Air can be fitted as standard or retrofitted to any cold water supply with hose fittings. The water connection can be made to an immersion pump, foot or hand pump. When connecting to a pressure pump, a safety valve set of 3 bar must be mounted.
The devices are designed for hose connectors to counteract the vibrations in the maritime and mobile area.

Nautic-Compact Air is designed so that even when the hot water tank is empty, the boiler always remains filled and can never be pumped empty. Complete emptying is therefore only possible when the water drain valve is open.

Nautic-Compact Air boilers, heat exchangers and radiators are made of the best acid-proof Niromaterial V4A stainless steel and fully insulated. The robust insulation ensures that warm water is available the next day.

For example, you can install it in the storage room or under a seating group where adequate space is available. Detailed installation instructions are enclosed with each device.

5-year guarantee

Standard equipment for LE:

Self-regulating radiator, 1 m connecting cable, overheating protection, water drainage valve, hot water connection = 10 mm
Air hose connection = 65-75 mm
