Fothermo Photovoltaic Caravan Boiler 10 Liters

A hot shower in the caravan. At any time at any place. Enjoy more independence, more freedom and more comfort! The photovoltaic caravan boiler offers the ideal solution for a reliable and sustainable way to heat hot water in your caravan. Once installed, the boiler produces free hot water for years. Just by the power of the sun.The 10 liter Caravan Boiler is ideal for motorhomes, caravans or self-built campers. Just everywhere where hot water is needed in mobile applications.

Connect the photovoltaic module directly to the boiler:
Up to 1500 Wp photovoltaic power can be connected to the boiler. The MPP tracker already integrated in the boiler ensures that as much energy as possible from the sun is converted into heat in the boiler. To put the boiler into operation, only the photovoltaic modules have to be connected to the boiler. No further devices such as charge controllers, MPP trackers, inverters or anything else are required

Details

• More freedom
  • A hot shower after an eventful day of hiking or sightseeing in the city makes traveling much more pleasant. The photovoltaic boiler warms up during the day so that a hot shower can be enjoyed immediately after returning to the caravan.
• More independence
  • The photovoltaic boiler is powered exclusively by electricity. This electricity comes either directly from the photovoltaic module or from a battery. The annual gas test at the TÜV, the regular purchase of new gas bottles or the refueling of diesel for the hot water production are now a thing of the past. The photovoltaic boiler produces hot water free of charge, climate neutral and independent of fossil fuels.
• Renewable hot water production
  • Use photovoltaic power. Direct connection of up to 1500Wp photovoltaic power.
• Intelligent battery operation
  • Use of excess energy from a 12V or 24V battery to heat the water.
• Anti-Frost
  • Easy draining of the water in winter possible.
• Made in Germany
  • Development and production of all boilers in Germany.
• No fossil fuels
  • Gas smell or exhaust fumes during water heating are now a thing of the past!
• Special Caravan Development
  • Innovative technologies and intelligent algorithms for maximum comfort.

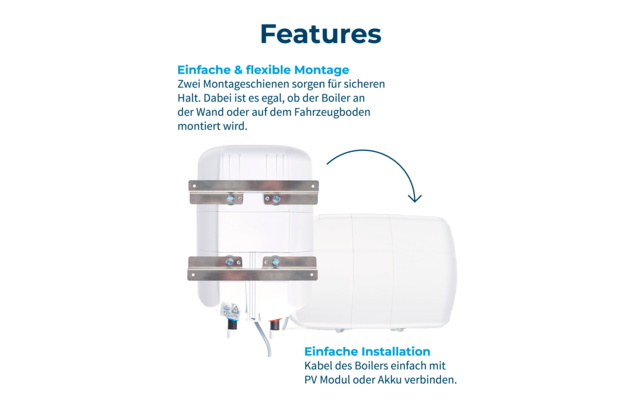

• Flexible assembly
  • The boiler can be mounted horizontally on a base plate or vertically on a wall.

Technical data

• Max. Current consumption: 15,5A
• Energy consumption (heating process FROM 15 °C TO 65 °C): 580 Wh
• Max. pressure: 7 Bar
• IP class: X1
• Max. Water temperature: 65 °C
• Adjustable temperature range for optional reheating via battery: 10 °C – 65 °C
• Integrated MPP tracker: Yes
• Integrated reverse polarity protection: Yes
• Integrated deep discharge protection: Yes
• Digital display on the boiler: Yes
• Temperature display with 5 meter cable: Yes
• Boiler tank: Steel
• Min. installation dimensions (length X width X height): 53 x 30 x 33 cm
• Water connection: G1/2 (M) – (1/2 inch standard)
• Recommended photovoltaic power: 150 – 300 Wp
• Max. Connected photovoltaic power: 1500 Wp
• Max. Photovoltaic module open circuit voltage: 42,4 V
• Possible connectable battery voltage: 12V or 24V
• Possible battery types: Lead, LiFePO4

Scope of delivery
1x 10 liter photovoltaic caravan boiler, 2x mounting rails, 1x digital thermometer with 5 meter cable length, 1x user manual, 1x relief and check valve, 1x drain valve and T-piece
