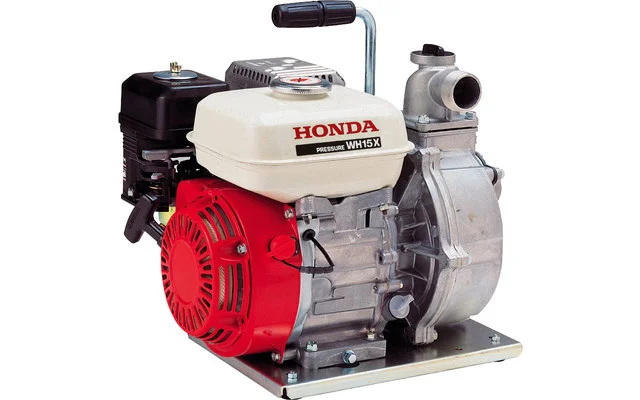

Honda WH 15 Water High Pressure Pump 370 L/min

High performance, with small size
The portable WH models deliver impressive pressure, making them ideal for sprinkling, spraying, garden irrigation and fire fighting applications.

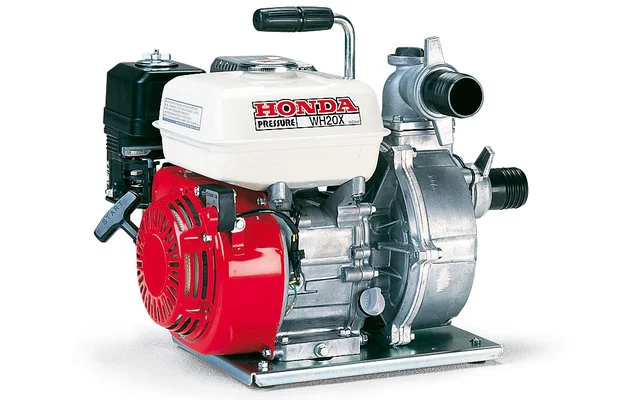

WH models – Compact size, impressive pressure
Compact size, with impressive water pressure (up to 5 bar). The WH models are capable of transporting large quantities of water over long distances. The combination of a rigidly mounted scroll, for less housing wear, and the reliable Honda GX engines, guarantees a long product life

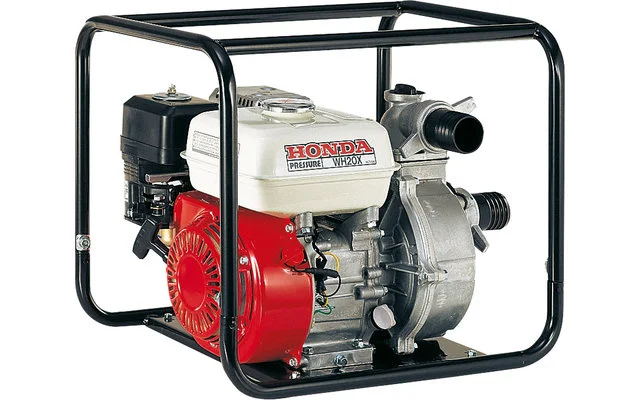

The WH 20 EFX is equipped with a frame and rubber suspension to reduce mechanical vibrations.

Features:

• Cast iron volute and impeller: Outstanding durability for long pump life, even when operating with abrasive slurry.
• Low oil protection: Prevents engine damage by automatically shutting down the engine if the oil level drops below a level safe for operation.
• Improved anti-vibration system (WH 20 EX / WH 20 EFX): Rubber mounts mounted at a 45° angle provide excellent vibration damping at high engine speeds.

	WH 15	WH 20 EX/WH 20 EFX
Max. Output power	370 l/min	450 l/min
Max. Capacity	22.2 m³/h	27.0 m³/h
Inlet/outlet diameter	40 mm / 1.5 ” PF	50 mm / 2.0 ” PF
Max. Total head	40 m	50 m
Max. Suction height	8,0 m	8,0 m
Delivery pressure	4.0 bar	5.0 bar
Max. Grain size	3.0 mm	3.0 mm
Engine model	GX120	GX160
Engine type	4-stroke OHV***, 1 CYLINDER	4-stroke OHV***, 1 CYLINDER
Cubic capacity	118 cc	163 cc
Bore x stroke	60,0 × 42,0 mm	68,0 × 45,0 mm
Engine speed	max. 3,600 rpm	max. 3,600 rpm
Engine Rated Power	2.60 kW	3.30 kW
Cooling system	Air Cooling circulating	Air Cooling circulating
Ignition system	Transistor	Transistor
Oil capacity	0,56 litres	0,58 litres
Fuel tank capacity	2,00 litres	3.10 litres
Operating time at max. delivery	1 h 30 min	1 h 30 min
Launch system	Pullstarter	Pullstarter
Sound pressure level at the operator’s ear	87 dB(A)	91 dB(A)
Guaranteed sound power level	104 dB(A)	106 dB(A)
