Lilie Lily 40mm T Pipe Connector With Double O Ring Pipe Plugging System

Connects pipe, ball valve and connector quickly and easily and at the same time safely and tightly. O-ring 1 is fixed in the inner outer ring groove of the pipe. O-ring 2 is located in the inner inner ring groove of the valve body or connectors. When the tube is inserted, the two O-rings then engage in the complementary free groove on the other component. The double O-ring seals and at the same time secures the connection. At the same time, the connection remains flexible so that readjustment is possible. Stress cracks are also avoided. All connectors shown can be simply plugged onto the tube.

Details

Version	Length (mm)	Width (mm)

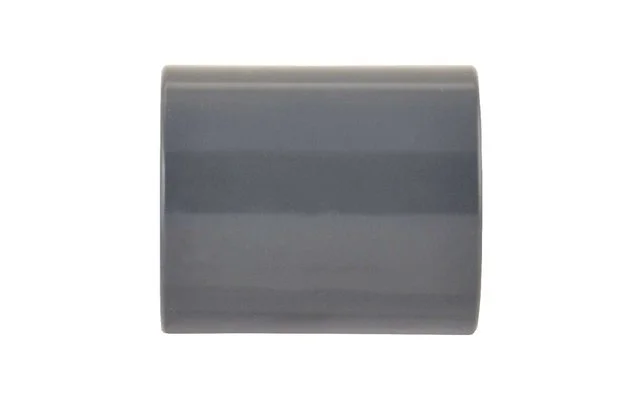

Straight pipe connector	58	49

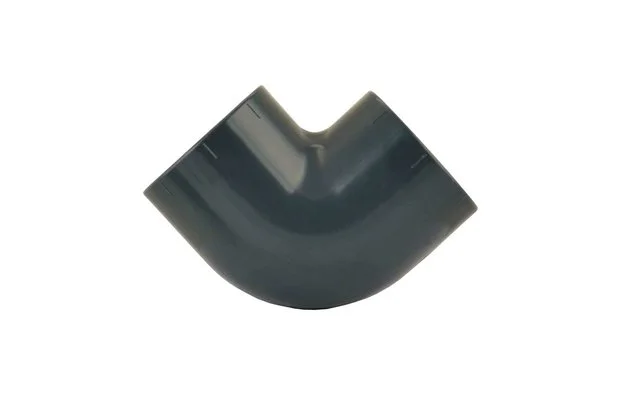

Angle connector 90 °	71	49

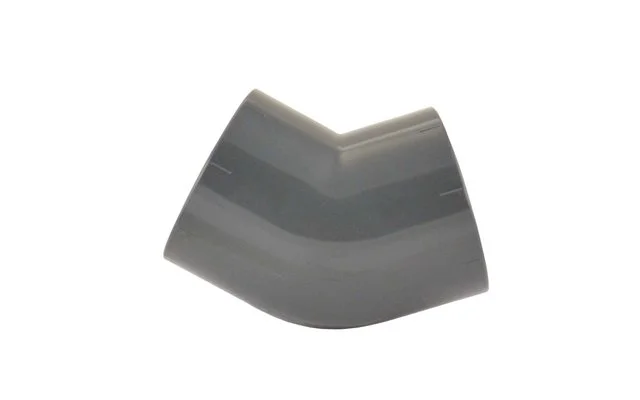

Angle connector 45 °	90	50

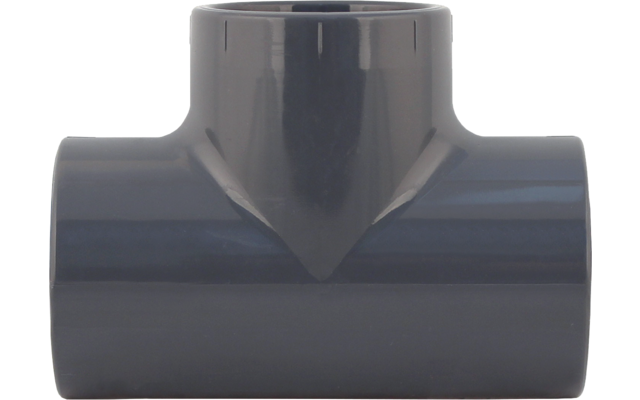

T-connector	99	70

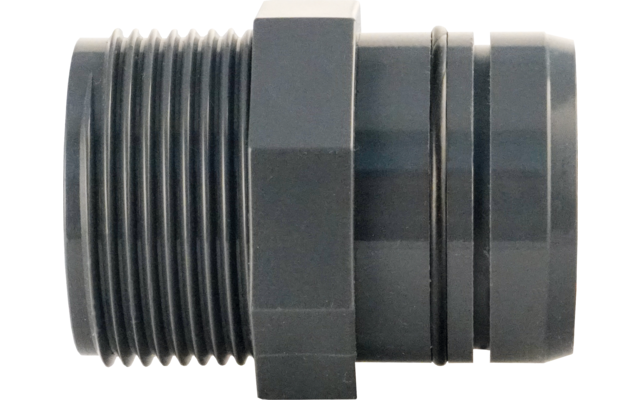

Straight pipe connector with 1 ¼” male thread Outer ring groove	55	40
