Lilie Lily Electric Ball Valve System – Plastic, 1 Inch

conveniently opens, closes and drains (waste) water circuits
A unique combination of various patent-pending special functions ensures long-term reliability.

Anti-blocking automatic DBGM reg.
The motor is automatically switched off after 3 unsuccessful closing attempts
and thus protected from overheating or damage.

High discharge capacity DBGM reg.
The flow rate is optimized for flow circumference in many cases.
Shape (flowing and smooth transitions), opening (clear width) and material (surface finish particularly smooth)
leads to a high flow rate.

High-performance actuator DBGM reg.
A high-performance servomotor specially developed for the requirement drives
via a special gearbox, the opening and closing mechanism is actuated with 7 Nm.

Remotely controllable
conveniently controllable – and environmentally friendly
With changeover switch, the valves are connected in such a way that operation is only possible when the motor is switched off.

Repetitive closure DBGM reg.
A sensor detects obstacles during closing and stops the drive automatically.
The system then automatically reopens completely and closes again with momentum.

Manual emergency operation
The system can be operated manually in case of emergency (e.g. power failure).
Tip: To do this, pull out the small rotary wheel and turn it

Details

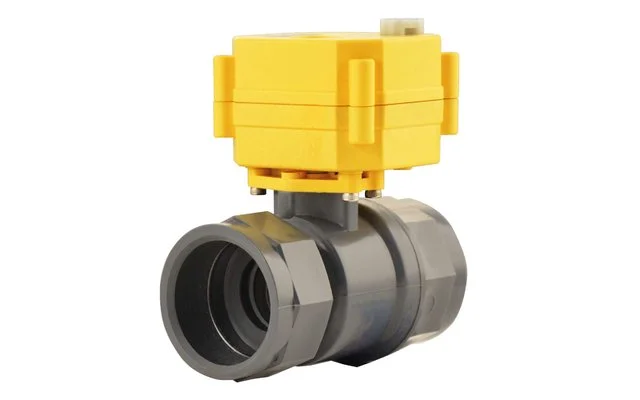

Lily electric ball valve system – plastic, 1 inch

• Thread type: plug-in thread on both sides
• Connection: 1″ female plug-in thread
• Material: LM T101 (PP), LMT 111 (PVC), LMT 107 (EPDM)
• Characteristics: Connection cable L0.8 m, change-over switch: 12 V, 10 A max., 4-pole

Lily electric ball valve system – 1 1/4 inch

• Type of thread: plug-in thread on both sides with integrated O-rings for LILIE-pipe plug-in system-GRAUGELB 40mm
• Connection: connection cable L0,8 m, 2-wire
• Material: LM T101 (PP), LMT 111 (PVC), LMT 107 (EPDM)

Lily electric ball valve system – 40mm heated, incl. switch

• Thread type: plug-in thread on both sides with integrated O-rings for LILIE-pipe plug-in system-GREY-YELLOW 40mm
• Connection: 40 mm LILIE-pipe system
• Material: LM T101 (PP), LMT 111 (PVC), LMT 107 (EPDM)

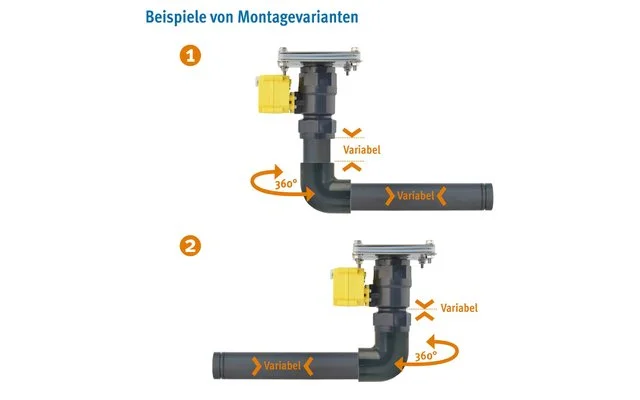

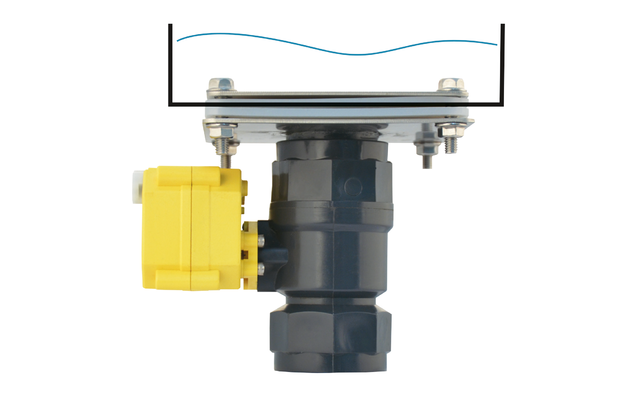

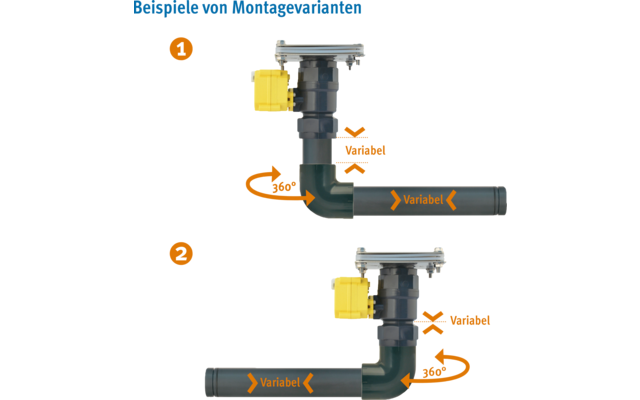

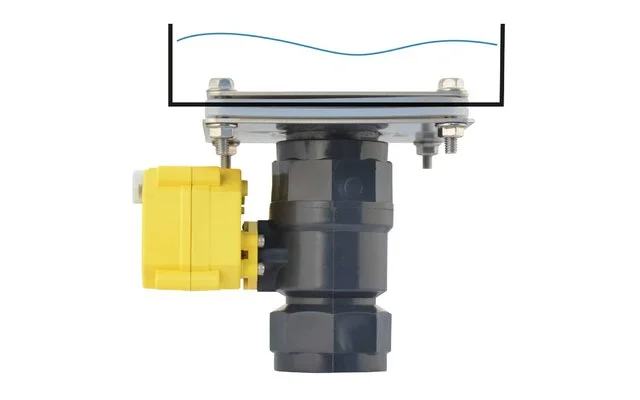

Lily electric ball valve system – for tank direct connection

• Connection: Connection for the LILIE-pipe plug-in system-Gray-YELLOW 40 mm with double O-ring. Ready for connection with 2 stainless steel adapters, gaskets and stainless steel screws
• Material: LM T111 (PVC), LM T107 (EPDM), LM T101 (PP), LM T105 (TPE), stainless steel,

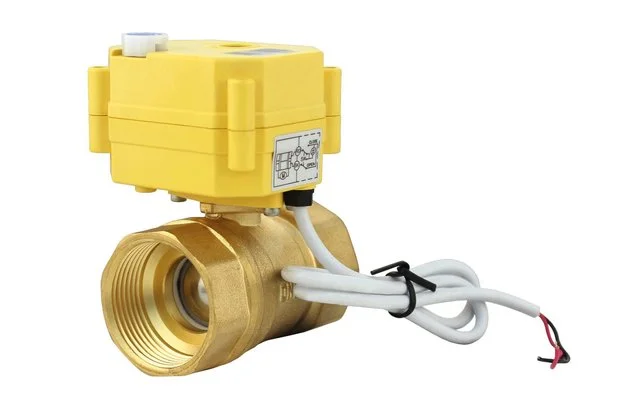

Lily electric ball valve system – 40mm

• Thread type: screw thread on both sides
• Connection: 1 ¼”, With connections
• Material: LM T150 (brass), LM T107 (EPDM)
