Separett Tiny Separation Toilet With Urine Can 49.7 X 39.8 X 47 Cm 12/110-240 V

Separett Tiny is a separation toilet designed specifically for Tiny Homes and other small spaces such as camper vans, caravans, boats, gazebos, etc. All that is needed for installation is a power connection with 12 V or 110-240 V and a 50 mm pipe for ventilation of the toilet.

Ideal for smaller rooms
Tiny is our newest member of the Separett family. The simple and flexible design of the Separett Tiny was born from many years of development of partition toilets and offers the perfect fit for rooms with limited space.

Closed system
This model of the Tiny series contains both the liquid waste and solid excreta in two separate containers. If the toilet is used in a permanent residence with two people, the solid waste collection canister must be emptied once a week. The urine canister must be emptied 2-3 times per week. Thanks to the sensor-based level indicator of the urine canister, the Separett logo on the toilet lights up red when it needs to be emptied.

Hygienic and odorless
You can rely on the Tiny toilet thanks to its high level of operational reliability, and its installation is child’s play. The faint odor that arises despite urine separation is led out by the fan and a better indoor climate is created by constant air circulation. At the same time the fan works quietly and effectively. The maximum effectiveness of the fan is achieved with continuous use.

Privacy screen

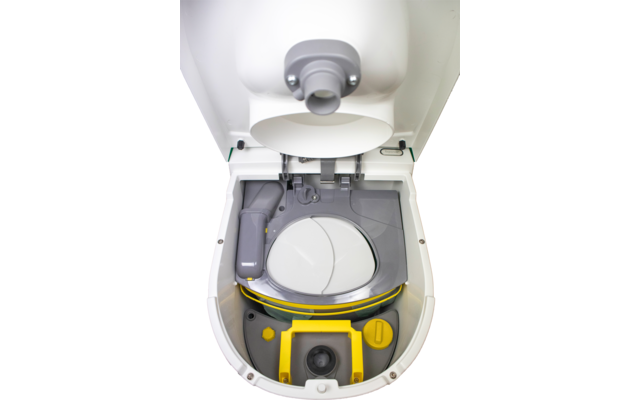

The privacy screen hides the solid excreta in the tank and automatically slides open when you sit down to go to the toilet. This way, you only see the waste when you empty the container.

User information

1. Always sit down when you use the toilet. Position yourself slightly further back than you normally would so that the urine can be separated from the solid excreta.
2. The privacy screen will automatically slide open as soon as you sit down.
3. The toilet paper goes into the same bin as the solid waste.

How it works
Separating toilet Tiny separates urine from solid excreta and is equipped with a fan that extracts moisture and air. This creates an odorless environment. This model of the Tiny series collects both urine and solid excreta products inside the toilet, with the solid waste ending up in a compostable organic waste bag made of corn starch. The urine is collected in a canister. If the toilet is used permanently in a household with two people, the solid waste container must be emptied once a week, and the urine canister 2-3 times a week. The urine canister is equipped with a sensor-based level indicator that causes the separet logo on the toilet to light up red when it is time to empty it.

Placement of the toilet
Separett Tiny works equally well in cold and warm rooms, regardless of the room temperature. The only requirements are that the urine is drained and a ventilation pipe can be mounted.
The toilet must be placed on the floor against the wall. For extra stability, it should be fixed either in the floor, in the wall, or both.

Drill holes as described in the installation template
The enclosed installation template shows you the possible options for installing the urine drain and vent pipes through the wall behind the toilet or through the floor. These options allow installation without visible pipes.

Installation of the ventilation pipe
The toilet is designed for 50 mm pipes (outer diameter). For optimal functioning, we recommend that you use Separett’s installation kit, which includes pipes and connections in the correct dimensions. Separett Tiny can be installed with up to 5 m of ventilation pipes and two 90° bends. Ventilation can be through a wall, the floor, the roof or a suitable side of the house to the outside. If there is already a ventilation pipe from a previous toilet installation, the toilet can be connected to it,
provided that the existing pipe is not smaller than 50 mm and meets the requirements. If you need a longer pipe that exceeds the above recommendations, you can install an extra fan (part number 13008). The toilet comes with a connector to connect the 40 cm long 50 mm pipe to a 1.5 inch pipe.

Installing the urine drain
The toilet is supplied with a 2 m urine hose. To connect this to the toilet, use the straight connection or the 90° connection. As with the installation of the vent pipes, it is possible to attach the urine hose so that no pipe is visible. This is achieved by angling the 90° connection downwards or by using the straight connection.

Details:

• Filter by function Battery/solar operation
• Possibilities of use Leisure house without electricity
• Capacity Unlimited – emptying needs depend on the number of users
• Product weight 8,5 kg
• Packing weight 12 kg
• Max. User weight 150 kg
• Product dimensions Length 49.7 cm | Width 39.8 cm | Height 47 cm
• Seat height 44-45 cm
• Package size Length 52.5 cm | Width 40.5 cm | Height 50 cm
• Material Recyclable high gloss polypropylene
• Emptying interval for 4 users (urine) Every other day
• Emptying interval for 4 users (solids) 2 times a week
• Volume – inner tank (urine) 7.5 l
• Energy consumption 0,04 kWh/ day
• Connection battery cable 1,55 m or power supply 110-230 V / 12 V
• Total power 12 V / 1,6 W / 133 mA
• Voltage 12V
• Ventilation duct/ pipe Ventilation pipe Ø50 mm
• Noise level during operation <30 dB(A)

Included in delivery

• Installation instructions
• Battery cable for 12 V use
• Universal adapter for 110-240 V use
• 1 x waste container with lid
• 1 x urine canister
• Ø 50 mm ventilation pipe, 40 cm
• Adapter Ø 50 mm to 1,5 inch
• Ventilation grille with insect net
• Ventilation hood
• Holder for drain cleaner tablet
• Installation template
• Screws for wall/floor
• Sample waste bag, compostable
• Sample organic drain cleaner
• Sample Absorb – absorbent cloth

Maintenance and cleaning
Separett Tiny should be cleaned with a gentle, environmentally friendly detergent. The toilet is made of dense high-gloss polypropylene, which is characterized by
aggressive cleaning can be scratched.
The fan must run continuously to prevent odors in the bathroom. Periodically flush the filter in the ventilation duct with water to ensure good ventilation.
