SOG Type 320S Saneo High Performance Fan Door Variant Black

An end to odor
By means of a small high-performance ventilator (resistant to the aggressive components in the intake air from the holding tank | watertight) specially developed for and with SOG, the following effect is achieved

• switches on automatically when the toilet slide is opened and creates a negative pressure in the waste-holding tank
• this creates a “SOG” at the slider opening, which draws in fresh air and also the odors produced during use and directs them outside
• the drawing in of the air acts as a seal and prevents 100% the rising of all unpleasant foul gases from the tank (comfort without odor)
• After automatic switch-off, however, there is still a ventilation to the outside and a closed system to the inside

Environmental protection
In addition to putting an end to odors, active toilet venting has the great advantage that it does not require the use of chemicals at all. When the valve is closed, the SOG system’s hose connection to the outside ensures that the decomposition process is accelerated by the deliberate supply of oxygen to the waste-holding tank. Even commercially available toilet paper is decomposed in a very short time and the use of special paper is unnecessary.

Activated carbon
An important component of the SOG and SOG II is activated carbon. This is produced, in a very environmentally friendly way, from organic materials such as peat, nutshells and sugar. It consists mainly of carbon (mostly >90%) with a highly porous structure. The pores are interconnected like a sponge (open-pored). Activated carbon is used as an adsorbent in chemistry, medicine, water and wastewater treatment, as well as ventilation and air conditioning technology, among others.

SOG + SOG II filters offer convincing advantages

• long lifetime (1 year)
• complete neutralization of odors due to seamless processing
• no carbon dust generation
• low weight
• compact dimensions
• Regular filter change, after one year is to be paid attention to,
• to provide good air also in front of the vehicle

Door variant
The fan is mounted directly inside on the disposal flap. On the outside the housing with activated carbon filter is mounted. The attractive plastic housing is available in white, light gray, dark gray and black and can also be painted in the color of the car. SOG for the service flap is the easiest venting variant to mount.

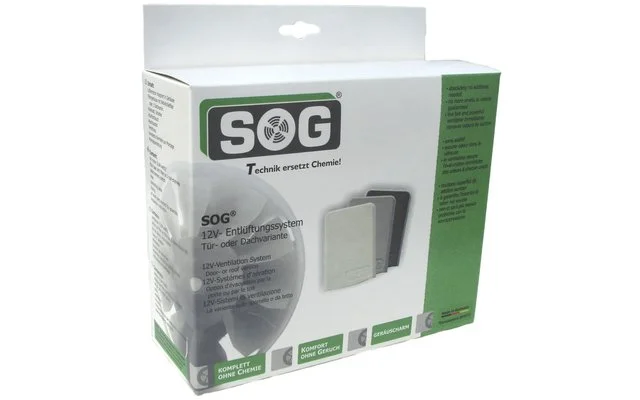

Contents of the complete kit

• Fan motor integrated in housing
• Exhaust hose with connector
• Adapter parts for connection to the cassette
• Sealing plug (for use when emptying the cassette)
• Set of cables with switch for power supply of the fan (during use)
• complete small parts for assembly
• Assembly instructions (very detailed)
• Filter housing in appropriate color selection with activated carbon filter
