Trobolo TeraBloem Separation Toilet Kit Without Exhaust System

Separating toilet as a prefabricated kit for indoor use.

Details:

• Comfort like a conventional WC
• Odourless operation thanks to separation system and litter / exhaust systems
• Optionally expandable with natural or electric exhaust air system
• Electric exhaust system (optional) with flexible USB connection (12V, 24V or 230V)
• Easy and hygienic emptying
• Self-sufficient without water and chemicals
• Simple assembly without additional tools
• High quality toilet seat with lid for comfortable use
• Ideal for indoor use

Dimensions and weight:

• Dimensions closed in mm: height 497, depth 470, width 330
• Seat height in mm: 477
• Tested load capacity: 200 kg body weight
• Weight: The weight of the Trobolo TeraBlœm is 12.7 kg.

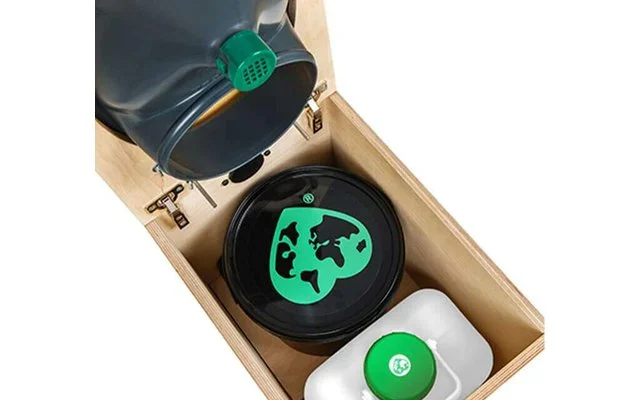

Capacity:

• Maximum number of uses by defecation: 15-20 uses, 30-40 uses (with electric exhaust system)
• Recommended emptying intervals of the solids container: 5-10 days*
• Volume of solids tank: 11 litres
• Maximum number of uses by urination: 30-50 uses
• Recommended intervals for emptying the liquid container: 3-4 days*
• Volume of liquid container: 10 litres

*The maximum number of uses can be exhausted regardless of the time if an electric exhaust system is used.

Material
The Trobolo TeraBlœm is made of FSC-certified 15mm alder plywood and is therefore particularly stable. The surfaces are optimally prepared for further individual surface treatment. The separating system is made of hard-wearing plastic and is surface-sealed.

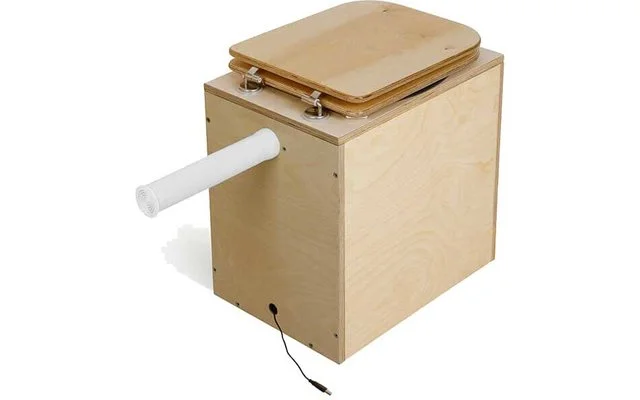

Electrical exhaust system (optional)
The electric exhaust system is especially recommended if you are going to use your Trobolo continuously. It can be flexibly connected via the supplied mains plug with USB connection (12V, 24V or 230V) and has an extremely low power consumption. The max. current is 0.26 A, the max. power consumption 1.3 W and the noise level 19.3 dB. The electrical exhaust air system can be operated via a regular power connection or, for example, via a power bank

Delivery & Commissioning
Your Trobolo TeraBlœm will be delivered to you by parcel service. It is a simple kit that can be assembled in no time thanks to the step-by-step assembly instructions included. The prefabricated wooden components are optimally prepared for surface treatment and thus enable you to create an individual design. With the optional natural oil set, you can give your Trobolo TeraBlœm water-repellent properties and thus ensure perfect protection.

The Trobolo TeraBlœm is available in various versions which are completely odour-free in operation thanks to the use of bedding or an electric exhaust system. If you want to use your Trobolo regularly, an electric exhaust system is recommended, as it has proven to be more comfortable and efficient for continuous use. With our exhaust duct, you can direct the odours outside via the electric exhaust system if required. For occasional use, for example on weekends, the use of litter instead of an electric exhaust system is sufficient for odour-free, self-sufficient toilet comfort. Optionally, you can also use our natural exhaust system in combination with bedding to remove residual odours and moisture to the outside without the use of electricity.

The Trobolo TeraBlœm can be used in many different places, but you should make sure that the place of installation is dry and level.

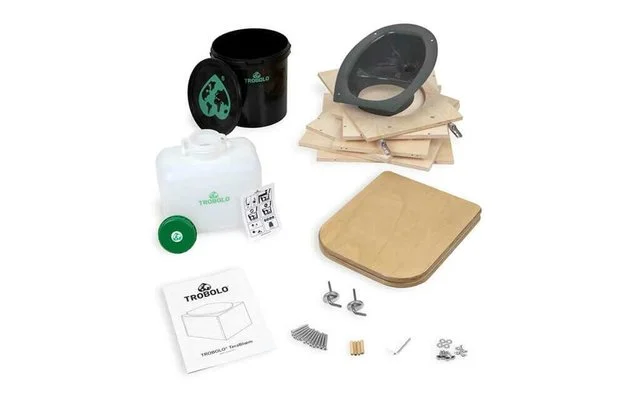

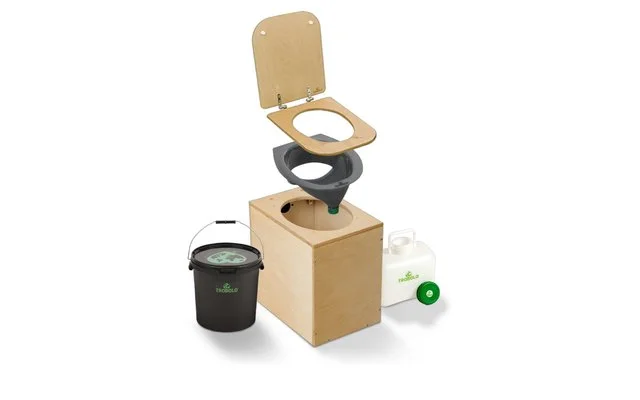

Scope of delivery

• 1x kit incl. small parts
• 1x Allen key, 11 litres
• 1x toilet seat with lid
• 1x separating insert
• 1x solids container, 11 litres
• 1x Liquid container, 10 litres
• 1x user manual
• 1x assembly instructions
• 1x “Instructions for use” sticker
• 1x Electrical exhaust air system (optional)
• 1x Exhaust air pipe set (optional)
