Votronic Tank Gauges For Fresh Water Tanks

The VOTRONIC tank gauges have been designed for accurate level measurement and can be used for all tank materials and tank sizes. They differ in the arrangement of the three-color indicator LEDs at the range ends and in the symbol imprint on the front panel.

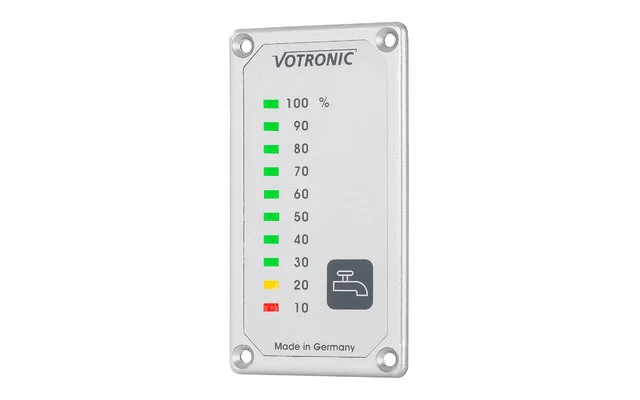

The fill levels of the tanks are displayed as clearly arranged light bars, each with 10 LEDs in three colors, which allows the exact recording of the tank fill levels at a glance. The displays operate continuously, as intermediate levels are displayed with variable brightness, so that trends can also be recognized immediately. During refueling and emptying of the tanks, the continuously rising or falling display provides the user with a direct image of the current fill level, thus enabling complete control of the process. The continuous operation of the display also contributes to this. At the push of a button, the display can be switched on and off, or switches off again automatically after approx. 10 minutes.

The indicators are designed as panel version matching the VOTRONIC modular system and fit perfectly to other VOTRONIC indicators (uniform height 85 mm). Of course, it is also possible to retrofit a single display in the vehicle. Small front panel dimensions and the particularly low installation depth of only 18 mm allow mounting in almost any location. The storage space behind can thus continue to be used.

The devices are protected against wrong polarity and overload and are easy to connect via screw terminals on the back of the device. Installation and operating instructions as well as a drilling template for the furniture cut-out are included in the scope of delivery. Like the encoders, the indicators are also suitable for 12V and 24V operation.

The marine version is a device with moisture-protected electronics additionally equipped

Details

• Operating voltage: 12 and 24 V
• Current consumption: 1 – 30 mA
• Dimensions (W x H x D): 47 x 85 x 20 mm
• Installation dimensions (W x H x D): 29 x 63 x 18 mm
• Mark of conformity: CE, E-testing (EMC/vehicle directive)

Scope of delivery

• Mounting screws
• Operating instructions
• Drilling template
