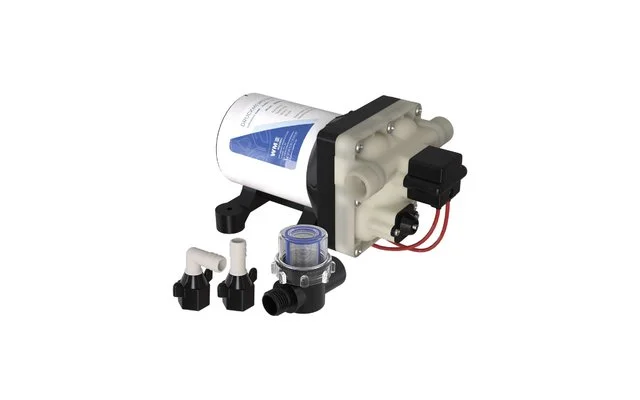

WM Aquatec Pressure Diaphragm Pump

Automatic drinking water pump with bypass control

• high flow rate with pulsation-free operation
• very quiet due to 4-chamber membrane technology
• and fully rubberized anti-vibration feet
• up to 11,6 l/min flow rate
• with adjustable bypass control
• adjustable pressure switch (default: 2,4bar)
• dry-running safe
• self-priming up to 4m height
• drinking water safe materials
• incl. stainless steel pre-filter strainer & hose connections
• compatible with UV-C LED water disinfection and sterile filters from WM aquatec

Technical data:

• max. flow rate: 11,6 l/min*
• Cut-off pressure: 2,4 bar (adjustable)
• Water connections: 12/13mm hose nozzle
• (1x straight, 1x angled)
• Voltage: 12V DC
• Power consumption: 3,2A* (max. 6A at preset)
• Dimensions (W x H x D): 125 x 111 x 203 mm (without connections)
• Weight: 1,9 kg

* Open Flow
